Complex requests and flexible layout

Visualize multiple time series in a customized layout.

Get data with Speasy

using Speasy
spz = speasy

using CairoMakie
using DimensionalData
using SPEDAS
using Dates

A complex requests

data = let intervals = ["2019-01-02T15", "2019-01-02T16"]
    products = [
        spz.inventories.tree.cda.MMS.MMS1.FGM.MMS1_FGM_SRVY_L2.mms1_fgm_b_gse_srvy_l2_clean,
        spz.inventories.tree.cda.MMS.MMS1.SCM.MMS1_SCM_SRVY_L2_SCSRVY.mms1_scm_acb_gse_scsrvy_srvy_l2,
        spz.inventories.tree.cda.MMS.MMS1.DES.MMS1_FPI_FAST_L2_DES_MOMS.mms1_des_bulkv_gse_fast,
        spz.inventories.tree.cda.MMS.MMS1.DES.MMS1_FPI_FAST_L2_DES_MOMS.mms1_des_temppara_fast,
        spz.inventories.tree.cda.MMS.MMS1.DES.MMS1_FPI_FAST_L2_DES_MOMS.mms1_des_tempperp_fast,
        spz.inventories.tree.cda.MMS.MMS1.DES.MMS1_FPI_FAST_L2_DES_MOMS.mms1_des_energyspectr_omni_fast,
        spz.inventories.tree.cda.MMS.MMS1.DIS.MMS1_FPI_FAST_L2_DIS_MOMS.mms1_dis_energyspectr_omni_fast
    ]
    get_data(products, intervals)
end
7-element Vector{Speasy.SpeasyVariable{Float32, 2}}:
 Speasy.SpeasyVariable{Float32, 2}(mms1_fgm_b_gse_srvy_l2_clean, Time Range: 2019-01-02T15:00:00.051 to 2019-01-02T15:59:59.977, Units: nT, Shape: (57599, 4))
 Speasy.SpeasyVariable{Float32, 2}(mms1_scm_acb_gse_scsrvy_srvy_l2, Time Range: 2019-01-02T15:00:00.030 to 2019-01-02T15:59:59.988, Units: nT, Shape: (115198, 3))
 Speasy.SpeasyVariable{Float32, 2}(mms1_des_bulkv_gse_fast, Time Range: 2019-01-02T15:00:01.683 to 2019-01-02T15:59:57.213, Units: km/s, Shape: (800, 3))
 Speasy.SpeasyVariable{Float32, 2}(mms1_des_temppara_fast, Time Range: 2019-01-02T15:00:01.683 to 2019-01-02T15:59:57.213, Units: eV, Shape: (800, 1))
 Speasy.SpeasyVariable{Float32, 2}(mms1_des_tempperp_fast, Time Range: 2019-01-02T15:00:01.683 to 2019-01-02T15:59:57.213, Units: eV, Shape: (800, 1))
 Speasy.SpeasyVariable{Float32, 2}(mms1_des_energyspectr_omni_fast, Time Range: 2019-01-02T15:00:01.683 to 2019-01-02T15:59:57.213, Units: keV/(cm^2 s sr keV), Shape: (800, 32))
 Speasy.SpeasyVariable{Float32, 2}(mms1_dis_energyspectr_omni_fast, Time Range: 2019-01-02T15:00:01.683 to 2019-01-02T15:59:57.213, Units: keV/(cm^2 s sr keV), Shape: (800, 32))

Plotting multiple time series on a single figure

let figure = (; size=(1200, 1200)), add_title = true
    f = Figure(; figure...)
    tplot(f[1, 1], data[1:3]; add_title)
    tplot(f[1, 2], [data[4:5], data[6:7]...]; add_title)
    f
end

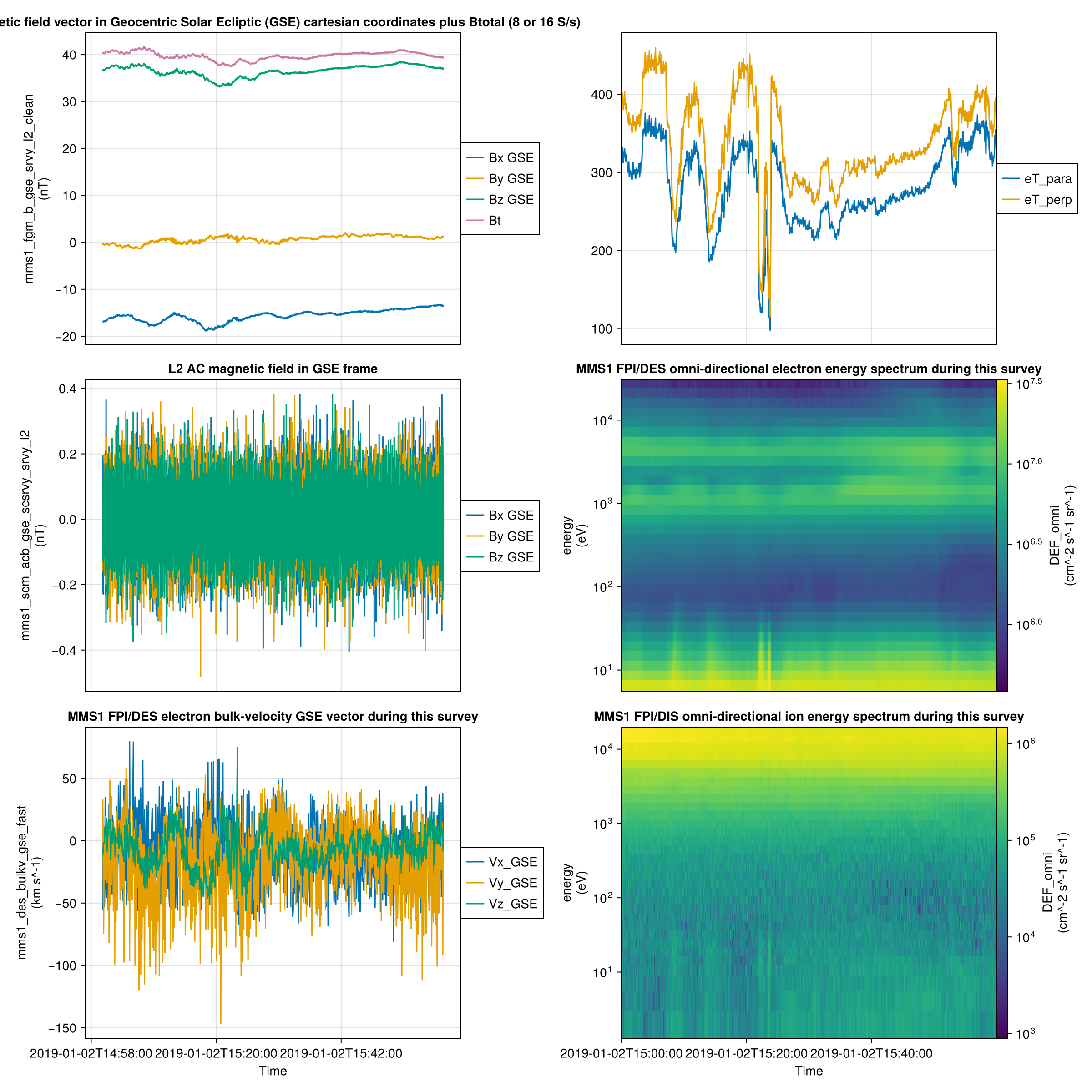

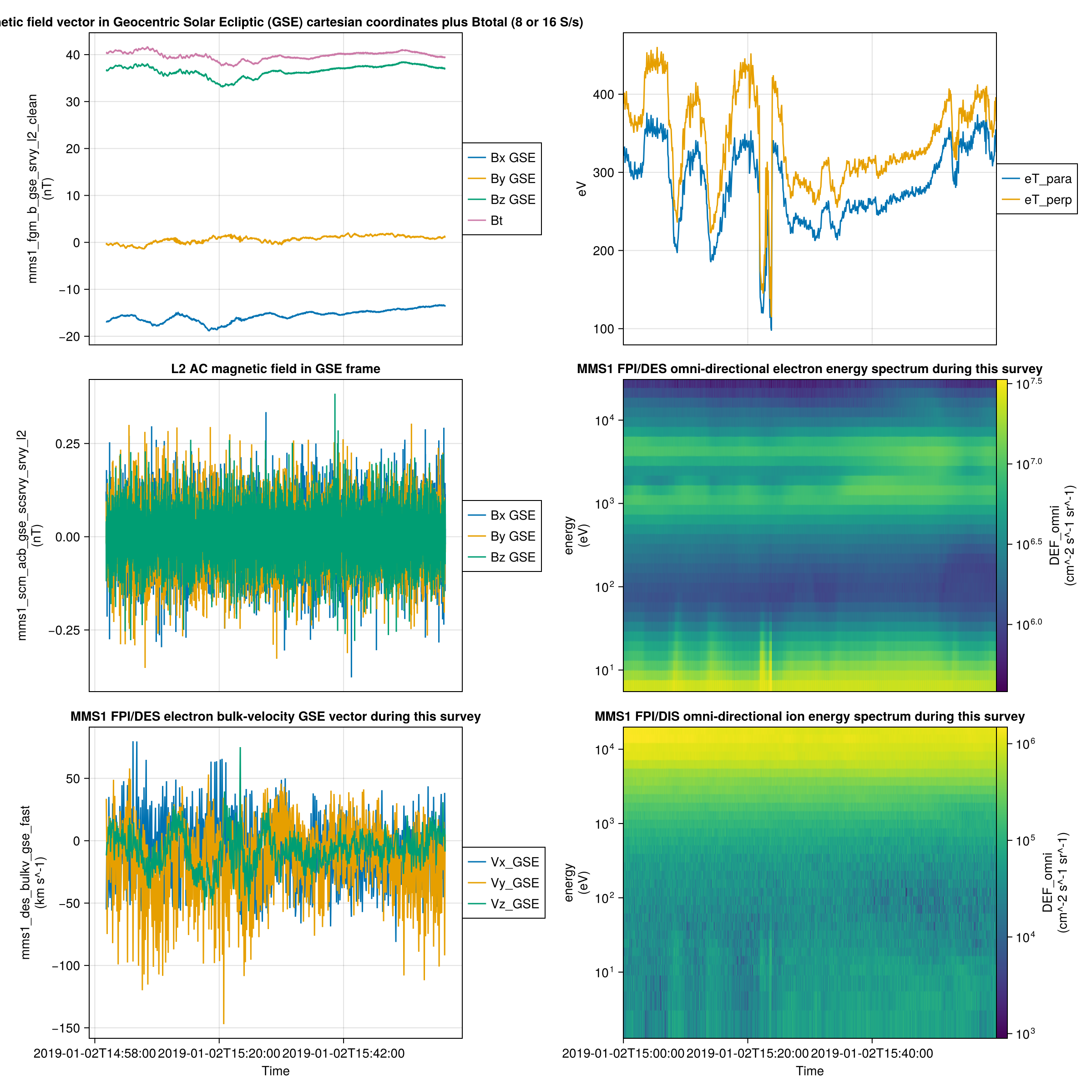

Example block output
