Interactive tplot with Speasy

Visual exploration of OMNI data

tplot with Speasy product ID strings

using Speasy
using SPEDAS
using Dates
using CairoMakie

t0 = DateTime("2008-09-05T10:00:00")
t1 = DateTime("2008-09-05T22:00:00")
tvars = [
    "cda/OMNI_HRO_1MIN/flow_speed",
    "cda/OMNI_HRO_1MIN/E",
    "cda/OMNI_HRO_1MIN/Pressure"
]

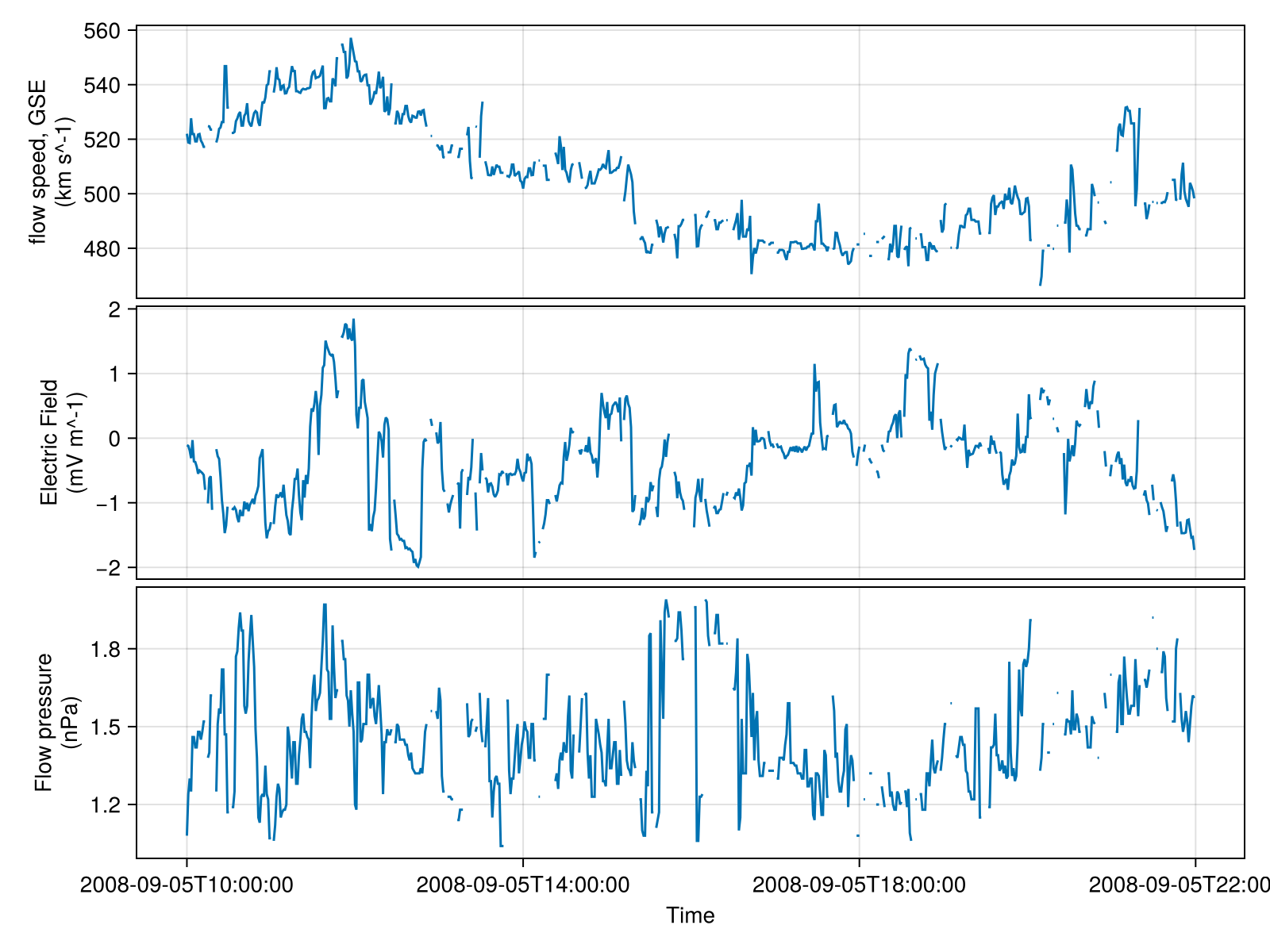

f, axes = tplot(tvars, t0, t1)

Interactive tplot

Here we simulate a user interacting with the plot by progressively zooming out in time with tlims!. Note: For real-time interactivity, consider using the GLMakie backend instead of CairoMakie.

dt = Hour(12)

record(f, "interactive_speasy.mp4", 1:5; framerate=1) do n
    tlims!(t0 - n * dt, t1 + n * dt)
    sleep(1)
end

"interactive_speasy.mp4"
